PCB Boards recycling of electrical cards, electronic cards, printed circuit boards and motherboards.

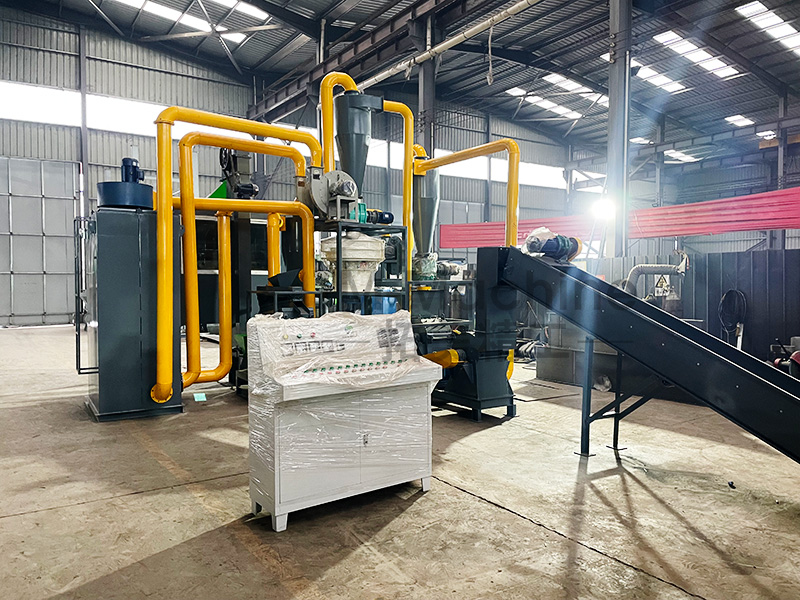

TM-Machine PCB recycling plant is used to recycle printed circuit board (PCB). It processes PCB into powder and finely granulated copper, aluminum, lead, tin, silver and gold. During the recycling process of waste circuit board, 3 steps of shredding, crushing and grinding technologies adopt to make the mixtures of metal and resin fiber powder. Weight vibration separator, air separation system and electrostatic separation system are designed to get pure metal powder and fiber powder. Purity of the output exceeds 98%. The system has an automatic air filtration system to maintain the workplace air quality. TM-Machine PCB recycling plant – with capacities up to 1200 kg/h, and realizes dedicated lines on customer request for higher productions.
PCB recycling machine is used for recycling all kinds of waste printed circuit boards, like computer boards, TV panels, aluminum-plastic panels, and copper plates; processing waste electrical appliances, like used TV sets, waste refrigerators, waste computers, waste air conditioners, and other waste materials.
Recyling Process
1. PCB Dismantling: The first step is to remove any components or parts from the PCBs, such as capacitors, resistors, and IC chips. This process can be done manually or by using a machine.
2. Crushing and grinding: The PCBs are then fed into a crushing machine, which breaks them down into small pieces. This process helps to liberate the metals from the non-metallic components.
3. Air Separation: The crushed PCBs are then passed through an air separator machine, which uses air currents to separate the metals from the non-metallic components. The metals are collected in one stream, while the non-metallic components are collected in another.
4. Magnetic Separation: In some cases, a magnetic separator machine is used to further separate the metals from the non-metallic components. This is particularly useful for separating metals such as iron, which can be extracted using a magnet.
5. Electrostatic Separation: Another method used to separate the metals from the non-metallic components is electrostatic separation. This involves passing the crushed PCBs through an electrostatic separator, which uses an electric charge to separate the metals from the non-metallic components.
6. Refining: The final step in the process involves refining the extracted metals to produce high-quality raw materials for reuse. This may involve further processing, such as smelting, to produce pure metals such as copper, gold, silver, and palladium.
Features
1. High efficiency: PCB recycling machines are designed to process large quantities of waste PCBs efficiently, minimizing the time and cost of recycling.
2. Automated operation: Many PCB recycling machines feature automated processes, such as conveyor belts and sorting mechanisms, that help to streamline the recycling process and minimize the need for manual labor.
3. Multiple separation methods: PCB recycling machines use various methods to separate the metals from the non-metallic components, such as air separation, magnetic separation, and electrostatic separation, which allows for a more efficient and effective recycling process.
4. Environmentally friendly: PCB recycling machines are designed to minimize the environmental impact of electronic waste by recovering valuable metals and reducing the amount of waste that ends up in landfills.
5. Customizable: PCB recycling machines can be customized to meet specific recycling requirements and can process a wide range of waste PCBs, from small electronic devices to large industrial equipment.
6. High-quality output: The extracted metals from the PCB recycling machine are of high purity and can be used as raw materials for various industries, such as electronics and manufacturing.
With the multi-layered and diverse TM Machinery product range, you will find the perfect
recycling solution for your business, customised to suit your requirements and needs.
TM-Machine engineers will “investigate” with the customer in order to define the proper machinery, proposing the best custom-made system. According to the customer needs about materials treatment, the capacity requirement and the warehouse layout, we will find the best solution. TM-Machine always strives for the best quality and highest possible recovery rates and outputs.
Material Testing
We invite you to send us samples of your materials with a description of your reduction requirements. Our testing laboratory will gladly analyze your needs and send you a sample of the finished product for your approval.
We will provide you a confidential technical analysis with the results and data.
Testing Machine Before Delivery
In order to provide customers with the best equipment quality, we provide testing machine service before delivery to ensure the normal operation of each equipment.
Installation & Commissioning & Training
M-Machine's service for recycling machines is now available worldwide. TM-Machine’s skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a TM-Machine technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
Spare Parts
Do you need advice about the right parts for your recycling machines? Our service and support experts will help find the right part and ship it to meet your needs. TM-Machine holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Putting your trust in parts from TM-Machine guarantees the continuity of your work processes.
Quick Response
We assure you of a detailed reply within 24 hours upon receipt of your request, and providing you with professional advice.
