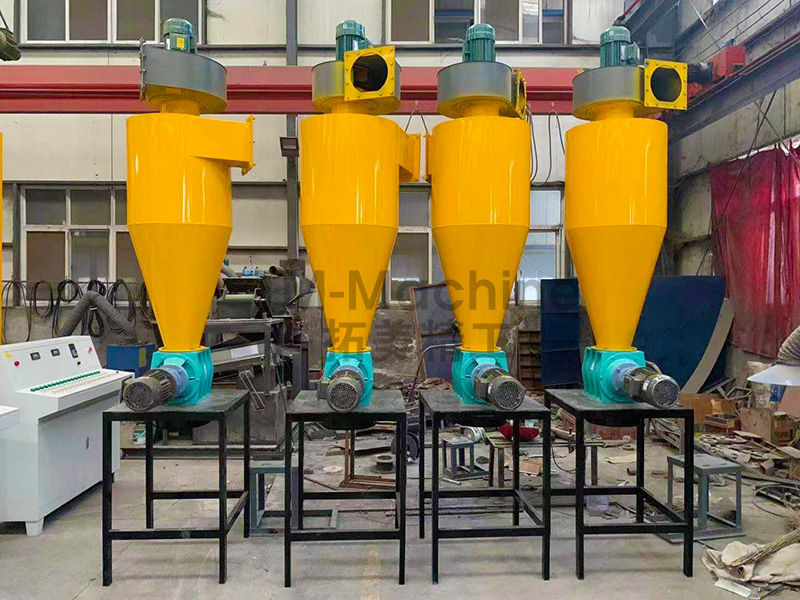

A cyclone dust collector extracts coarse debris, particles, and dust from an exhaust air stream. They are commonly used as the first stage in multiple stage dust collection systems, or as a product separator in air conveying systems.
Centrifugal force applied to the air stream by the cone shaped design results in the separation of larger particulate, allowing gravity to deposit it into a dust storage container placed beneath the cyclone.
The structure of the cyclone dust collector is composed of two inner and outer cylinders, a conical cylinder, an air inlet, and an ash discharge port. The inner and outer cylinders and the ash discharge port are located on the same axis.
After the dust-laden air enters tangentially through the air inlet on the upper part of the outer cylinder at a higher speed, it rotates spirally at high speed from top to bottom between the inner and outer cylinders and the cone. During the rotation, the dust particles are thrown to the inner wall of the outer cylinder under the action of a large centrifugal force and collide with the wall, friction and gradually lose speed, and then fall to the cone part along the wall of the cylinder under the action of gravity, and then from the bottom The ash outlet is discharged. When the airflow approaches the lower end of the cone, due to the air-closing device installed at the outlet, the air cannot flow out from the bottom, and it starts to reverse and rise again, and then is discharged through the inner cylinder.
Because there are no mechanical moving parts inside the cyclone dust collector, it is easy to use and maintain, and the separation efficiency of dust particles above 10 microns can reach more than 95%.
Application
1. Agriculture and grain
2. Shot blasting
3. Woodworking
4. Fiberglass or other fibers
5. Recycling
6. Paper trim
7. Metal reclaiming
Benefits
A cyclone dust collector separates and disposes of nearly all large particles from the exhaust before the air stream is sent through a second-stage filter or returned to the environment.
Cyclone collectors are low in cost, require little or no maintenance, and effectively collect most particles over 10 microns in size, allowing less material to be sent to a second stage collector.
In a pull-through cyclone collector design, the large particles are separated out before the fan wheel, allowing TM-Machine to design for maximum airflow without worrying about the fan’s ability to withstand the impact and abrasion of debris.
The cyclone separator is the most efficient dust collector for its cost.
Applications
We konw that recycling is not just recyling - our machinery is specialized for your specific waste or scrap type to ensure a profitable business.
With the multi-layered and diverse TM Machinery product range, you will find the perfect
recycling solution for your business, customised to suit your requirements and needs.
TM-Machine engineers will “investigate” with the customer in order to define the proper machinery, proposing the best custom-made system. According to the customer needs about materials treatment, the capacity requirement and the warehouse layout, we will find the best solution. TM-Machine always strives for the best quality and highest possible recovery rates and outputs.
Material Testing
We invite you to send us samples of your materials with a description of your reduction requirements. Our testing laboratory will gladly analyze your needs and send you a sample of the finished product for your approval.
We will provide you a confidential technical analysis with the results and data.
Testing Machine Before Delivery
In order to provide customers with the best equipment quality, we provide testing machine service before delivery to ensure the normal operation of each equipment.
Installation & Commissioning & Training
M-Machine's service for recycling machines is now available worldwide. TM-Machine’s skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a TM-Machine technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
Spare Parts
Do you need advice about the right parts for your recycling machines? Our service and support experts will help find the right part and ship it to meet your needs. TM-Machine holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Putting your trust in parts from TM-Machine guarantees the continuity of your work processes.
Quick Response
We assure you of a detailed reply within 24 hours upon receipt of your request, and providing you with professional advice.
Are you looking for a suitable recycling solution for your material? Please share a few more details with us and our experts will contact you right away!
