Wood pyrolysis products contain wood charcoal, wood vinegar and tar. They can be used or sold directly. If customers wanna improve the value of final products, use some equipment to reprocess them, for example, wood charcoal briquette making machine.

Continuous Operation without Stop
TM-Machine charcoal manufacturing machines can work without stopping for 24 hours continuously. And the automatic working method is able to guarantee a long-term working time and few larbor cost. This wood charcoal production method maximizes customers’ interests.

Guarantee the Safety to the Most Extent
Firstly, PLC is assembled with an alarm device. When some parts go broken, this part will alarm automatically. Secondly, there is an explosion-proof water seal at the end of the combustible gas flue. Thirdly, there is an explosion-proof hole at the end of the reactor to relieve extra pressure.

Save Your Fuel Cost Largely
After a period of preheating, the combustible gas processed by condensers is enough to provide heat for the reactor. And some part of high-temperature smoke has been applied to provide heat for the dryer. Accordingly, you can save a great deal of fuel cost when you choose TM-Machine machines.

Make Sure Pollution-free Design
The environmental problem has become a serious matter we should pay attention to, especially in Asia and Africa. The government hopes more environmental protection industries will be introduced. TM-Machine machine is the ideal equipment which has a dedusting system to clean the waste smoke.

Feed Wood into Wood Charcoal Making Reactor
Before pyrolysis, make sure the size of the wood is suitable. The smaller the material is, the better the carbonization effect is. Normally, we recommend the size of wood is no less than 2cm.
Besides, the drying system helps to reduce the extra water content of raw materials so that the final product-charcoal has great quality.
When wood meets the feeding requirement, push raw materials into the reactor.

Pyrolysis of Wood
Heating the combustion chamber. After reaching 150 degrees, the chemical reaction starts. When the temperature reaches 380℃, the wood charcoal will be generated. Besides charcoal, there is combustible gas in the reactor. Through processed by condensers, waste gas can be recycled to burn again. Moreover, some hot air will enter into the dryer to provide heat.

Discharge Wood Charcoal
Wood charcoal will be discharged at the end of the reactor automatically. Because TM-Machine wood charcoal production line is equipped with a water-cooling discharger, the final temperature of wood charcoal is about 30 degrees. This design helps to greatly reduce the possibility of spontaneous combustion.

TM-Machine offers 3 kinds of wood charcoal making equipment, including skid-mounted, batch and continuous wood charcoal equipment. When you wanna choose a suitable one, mainly consider capacity, land, and final wood charcoal uses.
TM-Machine skid-mounted charcoal making machines have one model, including TMT-05.

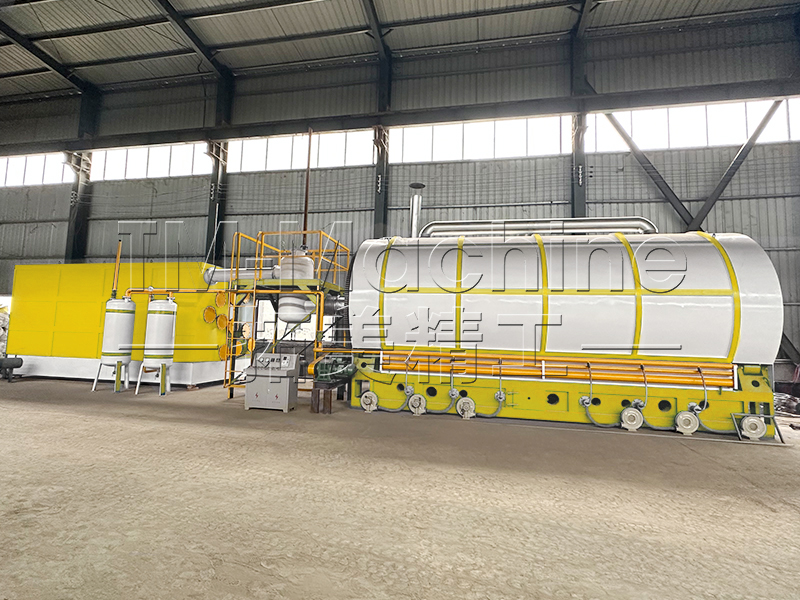

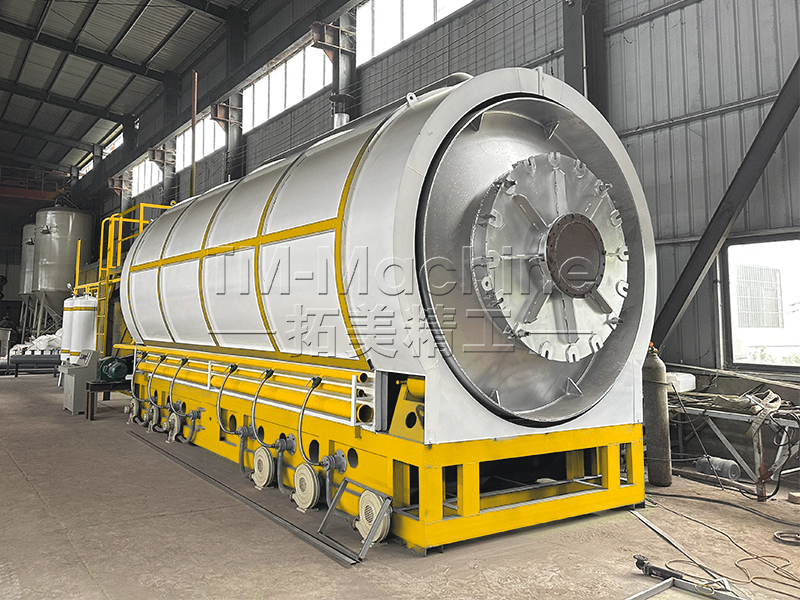

TM-Machine small wood charcoal making machines have three models, including TMT-J12, TMT-J18, and TMT-J40.
TM-Machine continuous wood charcoal making machines have two models. They are TMT-30 and TMT-50.

Model	TMT-J12	TMT-J18	TMT-J40	TMT-05 Pro (skid-mounted)	TMT-10	TMT-30	TMT-50
Input Capacity	12m³/batch	18m³/batch	40m³/batch	0.3-0.5m³/h	2-4m³/h	7-9m³/h	10-15m³/h
Reactor Size	φ1900mm * L4500mm	φ1900mm * L6600mm	φ2800mm * L7100mm	φ830mm * L5500mm	φ1300mm * L14051mm	φ1700mm * L14180mm	φ2000mm * L14260mm
Land for Equipment (L*W*H, Standard Configuration)	9m*6m*6m	12m*6m*7m	15m*18m*7m	10m*8m*3.9m	29m*15m*5m	30m*15m*8m	35m*18m*9m
Weight (Standard Configuration)	18T	22T	34T	15T	35T	35T	49T
Energy Consumption (Standard Configuration)	11kw/h	13.5kw/h	25kw/h	31kw/h	34.7kw/h	61.5kw/h	116kw/h
Working Method	Batch			Fully continuous
Feeding Requirement	/			Size: ≤20mm; moisture: ≤15%; strong liquidity
Structure	Horizontal rotation			Double barrel single hearth	Double barrel double hearth
Speed	0-2RPM			1-9RPM
Control Method	Control by buttons			Automatic control
Reactor Material	Q245R				Q245+310S
Pressure	Micro negative pressure
Heating Material	Diesel, natural gas, heavy oil, biomass, etc.
Heating Method	Direct heating
Noise (dB)	≤80
Condenser	Circulating water cooling
Rotation Method	External gear rotation

In order to give customers a reference, TM-Machine has sent many different kinds of samples to the testing facility. These samples are mainly coming from China, for example, wood. See the data of carbonized wood chips.
Note: besides wood chips, we also tested coconut shell charcoal, bamboo charcoal, coffee shell charcoal, etc. Leave us your need.

Kind	Wood Chips
Total Water (Mt%/)	6.84%
Analysis Water (Mad%)	4.51%
Ash Content on Dry Basis (Ad%)	5.871%
Dry Base Volatile Matter (Vd%)	20.8
Dry Base Fixed Carbon (Fcad%)	68.91
Sulfur Content on Dry Basis (St.d%)	0.08
New National Standard Calorimeter Dry Basis High Calorific Value (kcal/kg)	6454
The New National Standard Calorimeter Method Receives the Base Low Calorific Value ( kcal/kg)	6088

High-value Final Products
When customers take TM-Machine machines to manufacture wood charcoal, the final products have good quality, like wood chips charcoal, wood vinegar, and tar. They can be sold directly at a good price. In addition, customers can add some devices to improve their quality. Consult TM-Machine to get the recommendation.

Wood Pyrolysis Circle is Short
When investors apply TM-Machine continuous biochar production machines, the wood charcoal production circle is short. Usually, from feeding to discharging, it takes about 15-20 minutes. Moreover, this machine can work continuously. The whole production time will be reduced greatly because of this new design and high efficiency.

Wood Charcoal Manufacturing Cost is Low
After the installation finishes, the further cost is small. The costs mainly cover wood chips cost, manual labor fee, electricity cost, fuel fee, maintenance cost and other fees. Besides, there are some small costs. If you need a full cost list, we will give you a reference. Besides, we also can give you a benefits report.

Tracking Service for Life
TM-Machine will provide the tracking services for life to our customers. In the tracking period, TM-Machine will provide technical support and solutions to customers. If you need our services, just contact us right now.
